Desktop Table Laser Marking Machine

The big table size fiber laser marking machine BK-B is designed for high-volume marking processing. It can be widely used on various metals and some non-metal surfaces to produce permanent marks.

Product Details

0:00 / 0:00

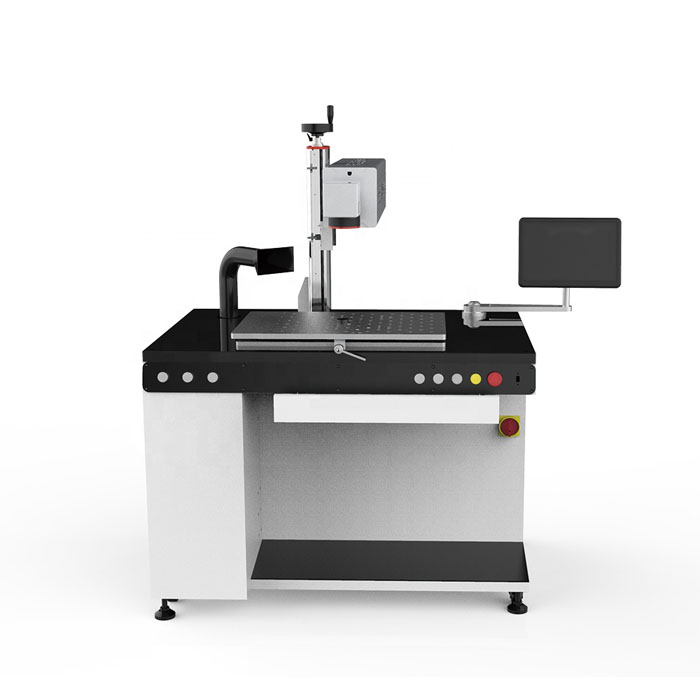

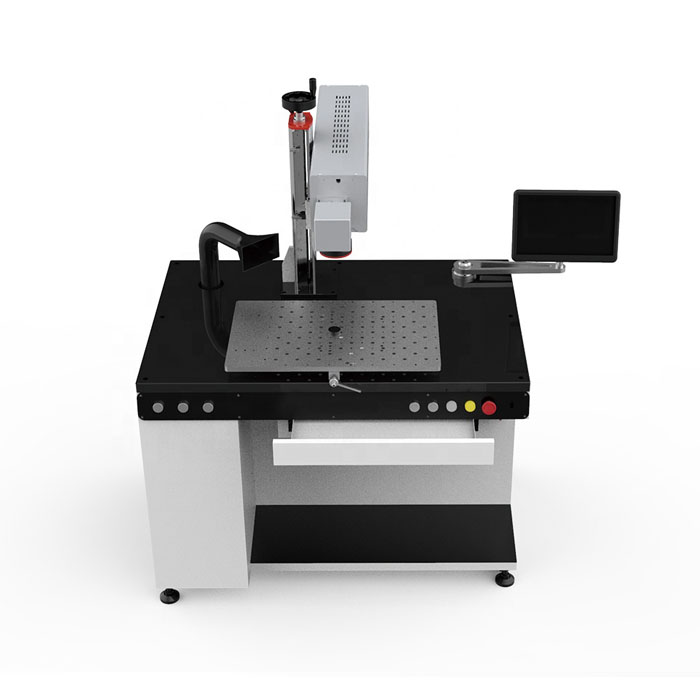

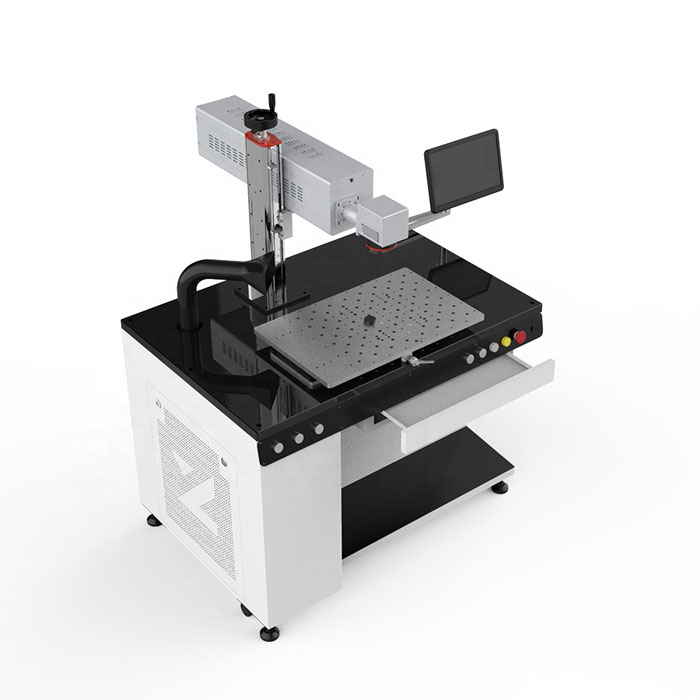

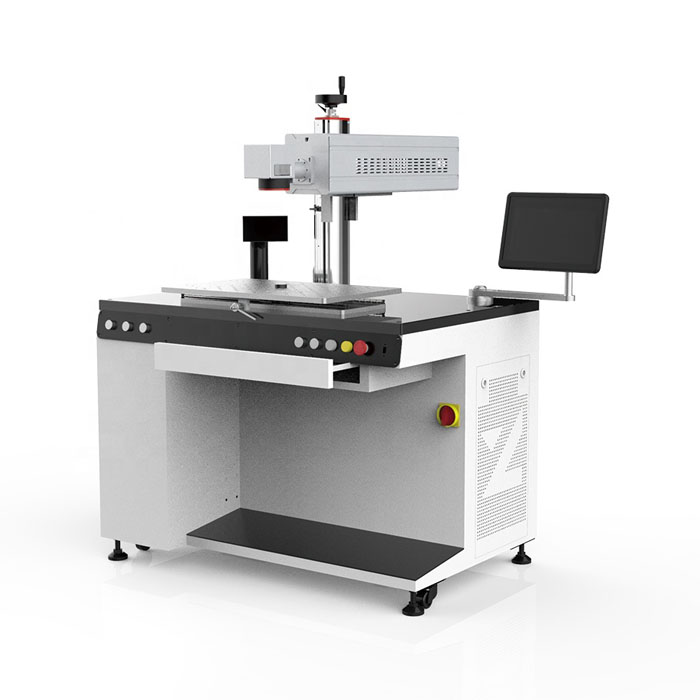

The big table size fiber laser marking machine BK-B is a large-format desktop laser marking machine developed by BEIKE according to customer's customized requirements. The processing width can be pushed and extended to 1000*600mm, enabling efficient marking of large-sized work pieces.



The big size fiber laser marking machine BK-B is designed for high-volume marking processing. It can be widely used on various metals and some non-metal surfaces to produce permanent marks.



high power laser cutter



> Without Consumables Free Maintenance

The built-in fiber laser source is practically maintenance free and absolutely reliable. Costs for consumables, spare parts or laser machine maintenance do not incur. fiber laser marking system can be used for 8-10 years without any consumables and no need to adjust the laser path.

> Long Lifetime

Fiber laser marking machine of the lifetime can reach 100,000 hours, so the machine can be used for more than 30 years. The photoelectric conversion has up to 90%, and the whole machine power is under 500w.

> Simple operation

The software supports almost all common file formats, do not need to understand any programming language, simply set a few parameters can start marking.

> High-Speed Laser Marking

The laser marking machine for metal can reach unto 0.001mm precision, the repositioning accuracy is 0.002mm, while diode only 0.01mm.

> High Accuracy Laser Marking

The software supports almost all common file formats, do not need to understand any programming language, simply set a few parameters can start marking.



Model BK-B20W BK-B30W BK-B50W BK-B60W BK-B100W
Average Power ≥20W ≥30W ≥50W ≥60W ≥100W
Wavelength 1064nm
M2 ≤1.3 ≤1.3
Max Pulse Energy 0.8mj 1.2mj
Standard Marking Range 110*110mm
Pulse Repetition Rate Range 1-400 khz
Pulse Duration 200ns 250ns
Delivery Cable Length 2M 3M
Min Resolution (mrad) 0.012
Min Line Width(mm) 0.01
Min Character(mm) 0.15
Repetition Accuracy(mm) 0.002
Cooling way Air Cooling
Power Adjustment Range (%) 0-100
Storage Temperature Range/℃ _10~60
Range of working temperature (℃) 0-40
Power Supply 220V+10%/50/60Hz/4A or custom made based on customer’s requirement
Machine Net Weight 150KGS
Machine Size 1100*760*1430mm
Machine Gross Weight 170KGS
Machine Packing Size 1240*1050*1180mm
International Shipping By Express, By Air or By Sea
Warranty 3 Years





BEIKE desktop fiber laser marking machine can process most metal and nonmetal materials, metal: stainless steel, carbon steel, alloy steel, spring steel, copper, aluminium, gold, silver, titanium, ring and other metal materials. Nonmetal: painting acrylic, density board, plastic, acrylic, rubber, bamboo, marble, painting glass, wood, leather, TPU and other nonmetal materials.

BEIKE desktop fiber laser marking machine widely used in electronic components, integrated circuits, electrical appliances, mobile communications, hardware, tools, accessories, precision instruments clocks and watches, glasses, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipes and other industries.





If you are concerned about maintenance, please choose us

3 years warranty

10 times compensation on fake

Worry-free return & Lifelong maintenance

24 hours service

Overseas third-party support

The machine has a long warranty of 3 years. The equipment leaves the factory after 26 rigorous inspection procedures and a 72-hour aging test to ensure that the best equipment is delivered to the customer.







Approved Vendor for International Giants SIEMENS

Member of CLA ( China Laser Association)

CNGC(China Weapon Industry Corporation)Laser Equipment Supplier

Serving more than 150 countries and regions,

Annual total export exceeds 15 million US dollars

Professional provider of Wisdom solutions in China.





FAQ

1.Are you manufacturer or trader?

We are the manufacturer with professional workers that operating with laser machine for many years and welcome to visit our factory. We not only provide you a suitable tool, but also work to help you produce better products and gain greater market competitiveness.

2. I know nothing about the fiber laser  machine, what kind of machine I should choose?

Please tell us what would you like to do with this machine. And sending us a sample picture is better. Then we will send you a perfect solution and suggestion.

3.what materials are suitable for this machine?

The fiber laser marking machine can be used for all kinds of metal materials and parts of non-metal materials.

4.This model is not suitable for me, do you have more models available?

A: Sure, we have many other models can be provided if I know your special requirements.

5. How about the guarantee of your laser marking machines?

3 years warranty is available.
