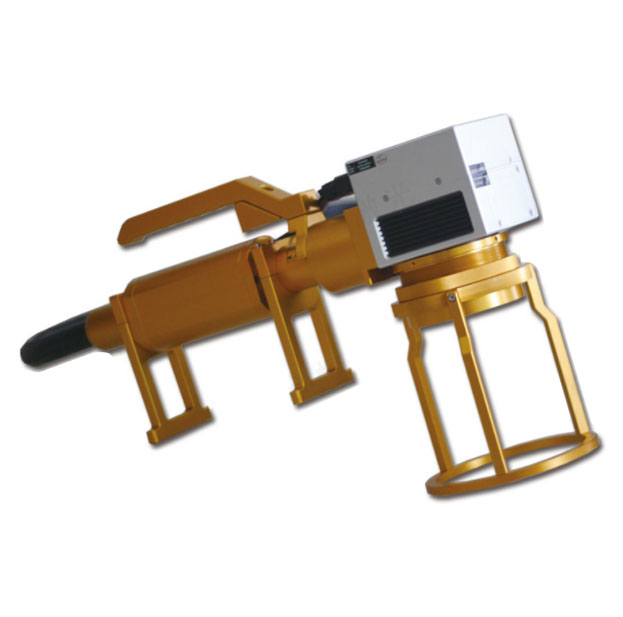

Handle Laser Marking Machine

BEIKE BK-SC series handle laser marking machine is mainly used for marking to big size and heavy weight products which are not easy and convenient to remove and carry.

Product Details

portable laser engraver

0:00 / 0:00



APPLIED MATERIAL

Stainless steel, aluminum, copper, iron, aluminum alloy, all kinds of alloy and all kinds of metal. 2. PP, PE, PS, PF, ABS, PVC, resin, rubber, etc. 3. On all kinds of the processed surface such as spray paint, powder coating, oxidation, electrophoresis, etc. 4. Stone, coloured paper, coloured acrylic, etc.



handheld laser marker



APPLIED FIELD

BEIKE BK-SC series handle laser marking machine is mainly used for marking to big size and heavy weight products which are not easy and convenient to remove and carry.





> Without Consumables Free Maintenance

The built-in fiber laser source is practically maintenance free and absolutely reliable. Costs for consumables, spare parts or laser machine maintenance do not incur. fiber laser marking system can be used for 8-10 years without any consumables and no need to adjust the laser path.

> Long Lifetime

Fiber laser marking machine of the lifetime can reach 100,000 hours, so the machine can be used for more then 30 years. The photoelectric conversion has up to 90%, and the whole machine power is under 500w.

> Simple Operation

The software supports almost all common file formats, do not need to understand any programming language, simply set a few parameters can start marking.

> High Speed Laser Marking

The laser marking machine for metal can reach unto 0.001mm precision, the repositioning accuracy is 0.002mm, while diode only 0.01mm.

> High Accuracy Laser Marking

The software supports almost all common file formats, do not need to understand any programming language, simply set a few parameters can start marking.



Model BK- SC20W BK-SC30W BK-SC50W
Average Power ≥20W ≥30W ≥50W
Wavelength 1064nm
M2 ≤1.3 ≤1.8
Max Pulse Energy 0.8mj 1.2mj
Standard Marking Range 110*110mm
Pulse Repetition Rate Range 1-400 khz
Pulse Duration 200ns
Delivery Cable Length 2M 3M
Min Resolution (mrad) 0.012
Min Line Width(mm) 0.01
Min Character(mm) 0.15
Repetition Accuracy(mm) 0.002
Cooling way Air Cooling
Power Adjustment Range (%) 0-100
Storage Temperature Range/℃ _10~60
Range of working temperature (℃) 0-40
Power Supply 220V+10%/50/60Hz/4A or custom made based on customer’s requirement
Machine Net Weight 55KGS
Machine Size 645*210*595mm
Machine Gross Weight 85KGS
Machine Packing Size 760*350*710mm
International Shipping By Express, By Air or By Sea
Warranty 3 Years

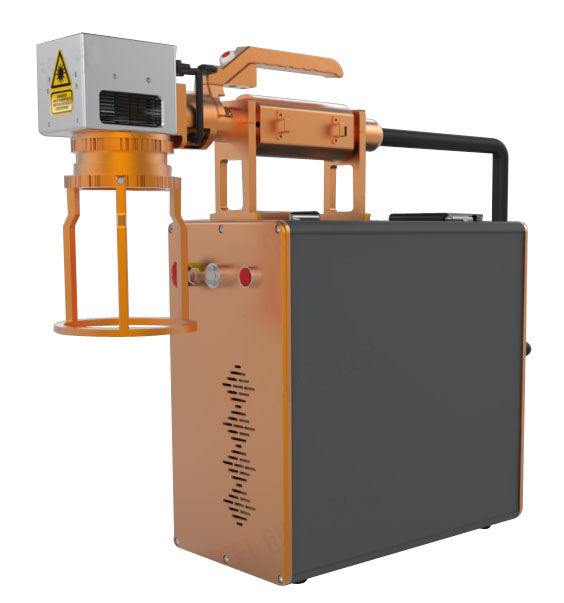

portable laser marking machine



BEIKE intelligent fiber laser marking machine can process most metal and nonmetal materials, metal:stainless steel, carbon steel, alloy steel, spring steel, copper, aluminum, gold, silver, titanium, ring and other metal materials. Nonmetal: painting acrylic, density board, plastic, acrylic, rubber, bamboo, marble, painting glass, wood, leather, TPU and other nonmetal materials.



BEIKE Intelligent fiber laser marking machine widely used in electronic components, integrated circuits, electrical appliances, mobile communications, hardware, tools, accessories, precision instruments clocks and watches, glasses, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipes and other industries.





Pre-sales Service

1. 12 hours quick pre-sales response and free consulting;

2. Any kind of technical support are available for users;

3. Free Sample Making is available;

4. Free Sample Testing is available;

5. Progressing solution design will be offered to all the distributor and users.



After-Sales Service

1. 12 languages 24 hours Quick Feedback;

2. "Training Video", "Instruction Book", and "Operation Manual" will be offered;

3. Brochures for simple trouble-shootings of the machine is available;

4. Plenty of technical support online is available;

5. Quick Back-up Parts Available & Technical Assistance;

6. Free training service is available.



Approved Vendor for International Giants SIEMENS

Member of CLA ( China Laser Association)

CNGC(China Weapon Industry Corporation)Laser Equipment Supplier

Serving more than 150 countries and regions,

Annual total export exceeds 15 million US dollars

Professional provider of Wisdom solutions in China.





FAQ

1.Are you manufacturer or trader?

We are the manufacturer with professional workers that operating with laser machine for many years and welcome to visit our factory. We not only provide you a suitable tool, but also work to help you produce better products and gain greater market competitiveness.

2. I know nothing about the fiber laser  machine, what kind of machine I should choose?

Please tell us what would you like to do with this machine. And sending us a sample picture is better. Then we will send you a perfect solution and suggestion.

3.what materials are suitable for this machine?

The fiber laser marking machine can be used for all kinds of metal materials and parts of non-metal materials.

4.This model is not suitable for me, do you have more models available?

A: Sure, we have many other models can be provided if I know your special requirements.

5. How about the guarantee of your laser marking machines?

3 years warranty is available.
