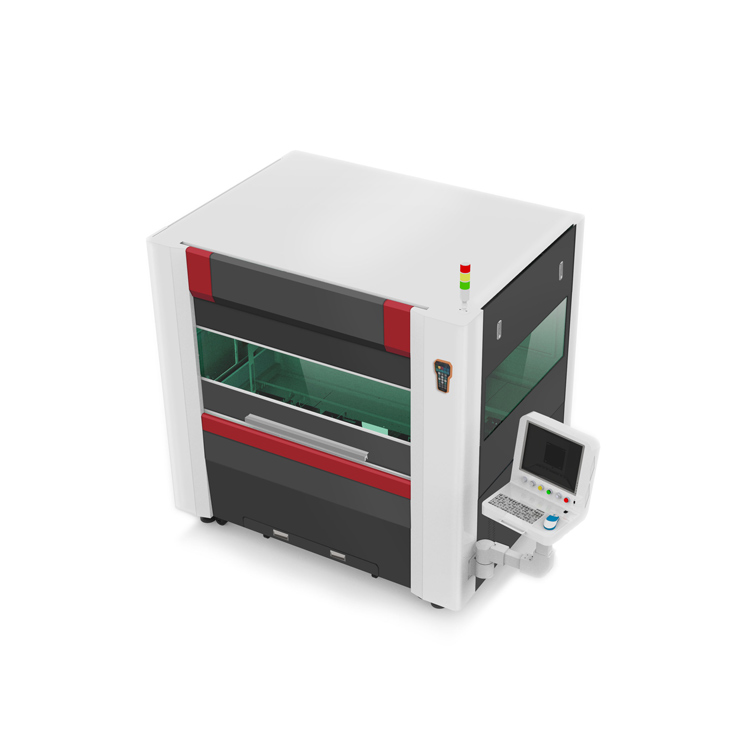

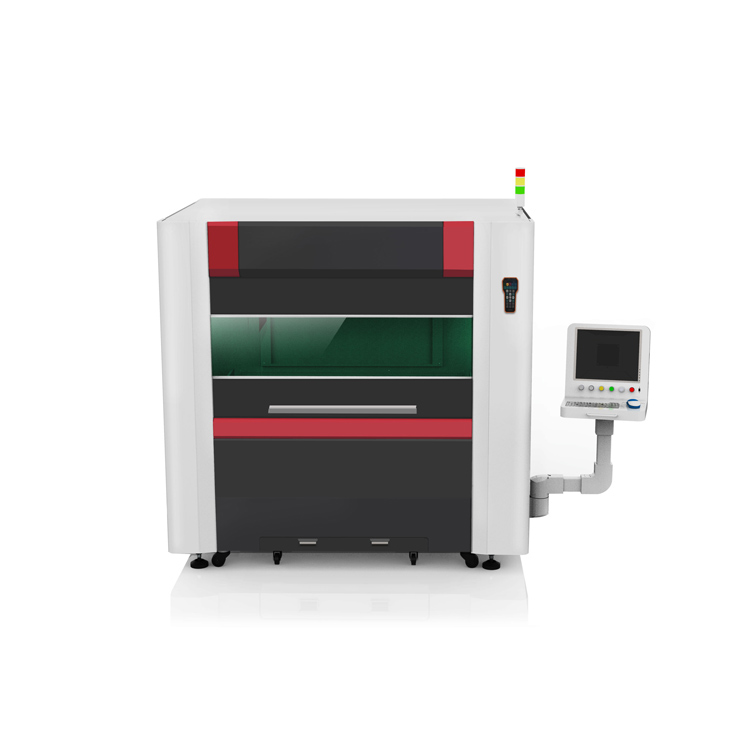

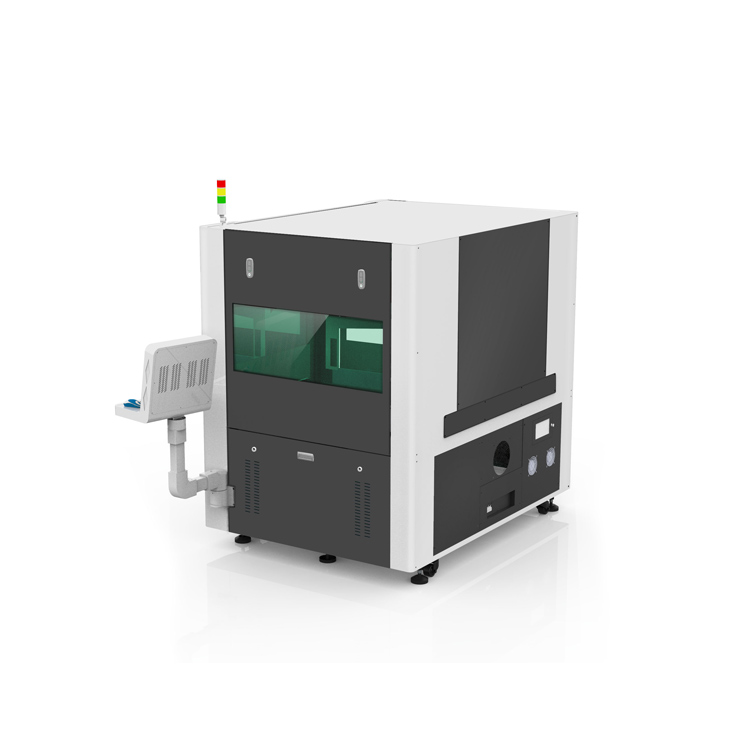

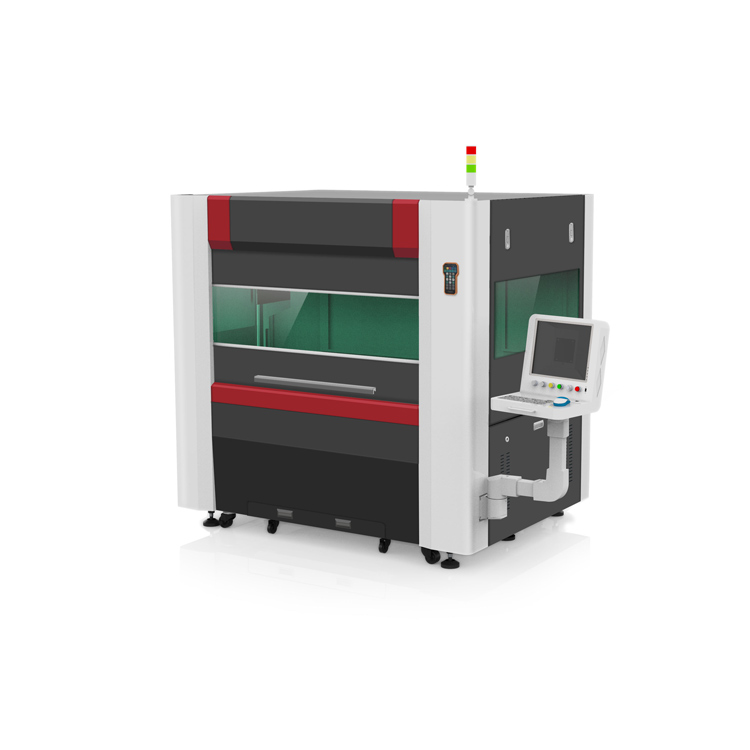

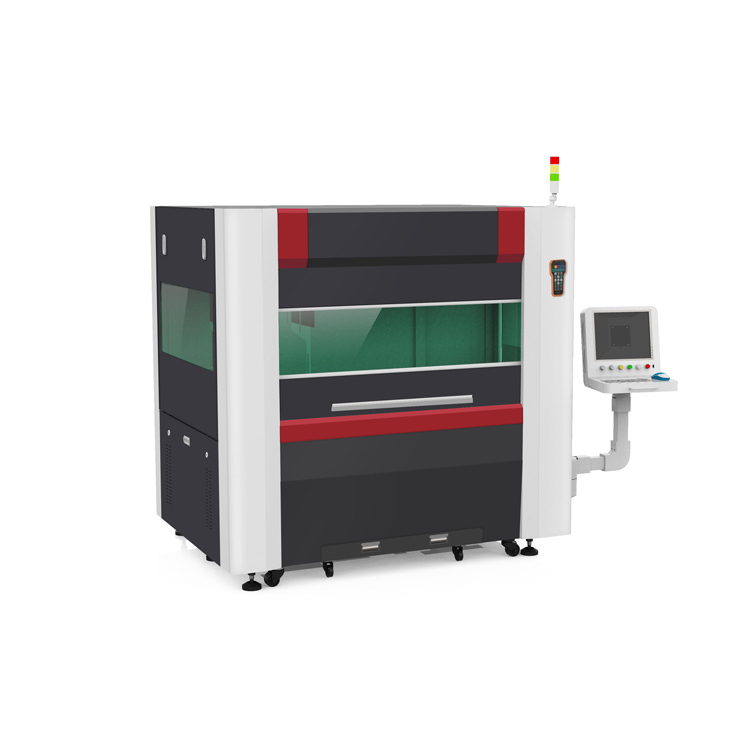

Light Duty High Precision Fiber Laser Cutting Machine

Small Size laser Cutter
High Precision Laser Cutting
Small Cutting Area
IPG or Raycus Laser Source
Laser Power: 500W – 3000W

Product Details

0:00 / 0:00

Modular, easy to maintain.

3 protective lens, highly effective protective collimating focusing lens.

2 optical water-cooling device which can effectively prolong the continuous working time.

IP65 dust proof class, patent protection mirror cover plate, dust proof without dead angle.

Adopt closed-loop stepping motor to effectively avoid losing steps.The focusing speed is 100mm/s, and the repetition precision is 1 m.

Fast cutting and piercing speed.



Cutting Advantages:

Smooth cutting surface can be polished without secondary processing.

Support to cut ultra-small holes.

Support three levels of perforation, segmentation or progressive combination. The ratio of processing range of the small holes can be reduced to be 0.3 mm.

Support advanced processes such as cooling point, sharp corner cutting, and release angle, which can solve the scorch problem in sharp corner cutting and achieve better cutting effect.



Model 6060 1360 1390 1510
Working area 600*600mm 1300*600mm 1300*900mm 1500*1000mm
X axis stroke 600mm 1300mm 1300mm 1500mm
Y axis stroke 600mm 600mm 900mm 1000mm
X, Y axis positioning accuracy ±0.03mm
X, Y axis repositioning accuracy ±0.015mm
Phase 3
Nominal voltage 380V
Frequency 50/60Hz
Protection grade IP65
Machine Size(L*W*H) 1350*1800*1955mm 2000*1500*1955mm 2724*2125*
2000mm
2944*2250*
2000mm
Machine Size(L*W*H) 2000KG 2300KG 2500KG 3000KG




Featured with capabilities of intelligent stroke protection and automatic detection of the working range, equipped with international standard limit spring, with cutting head built-in capacitor height adjustment function and contact plate surface immediate stop function for ensuring safe operation.

High cutting speeds and minimal downtime.

Low investment and operating costs.

Very easy to operate and install.

Intelligent alarm system



Export standard for Metal Fiber Laser Cutting Machine Laser Cutter:

1-Scratch resistant and anti-static with professional packing film;

2-Anticollision for whole machine with special mould;

3-Waterproof and waterproof with tarpaulin material.





Approved Vendor for International Giants SIEMENS

Member of CLA (China Laser Association)

CNGC (China Weapon Industry Corporation) Laser Equipment Supplier

Annual total export exceeds 15 million US dollars

Professional provider of Wisdom solutions in China.



FAQ

Q1: What can I get the available machine if I don't know anything about laser?

BEIKE Laser will provide the customized application solution for your requirements, just tell us your material, material thickness, worktable and e-mail or WhatsApp ID.

Q2: How to choose the machine that I want?

BEIKE Laser provides information consulting about product, price, technology and industry solutions for customers at any time via network, telephone, email and door to door.

Q3: When I got this machine, but I don’t know how to use it. What should I do?

BEIKE Laser provides free installation and training for users’ technicians, ensures that users can get familiar with operation methods and put machines into use as soon as possible.

Q4: If some problems happen to this machine, what should I do?

BEIKE Laser provides 3 years warranty and lifetime maintenance. Free repair for mechanical failure and parts damage (no human factors and force majeure factors) under warranty (replacement parts except wearing parts are provided by BEIKE Laser are free of charge). Charging at cost when out of warranty.
